Directional Valves VEP-16
- Home
- Products
- Cartridge Valves
- Directional Control
- Directional Valves
Features

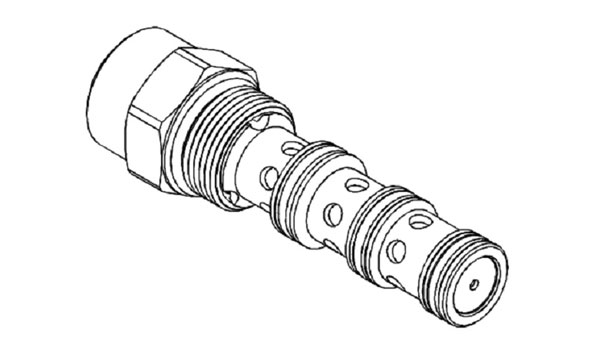

- A cartridge-style, pilot-operated, hydraulic directional valve for three-way circuits requiring remote pilot actuation.

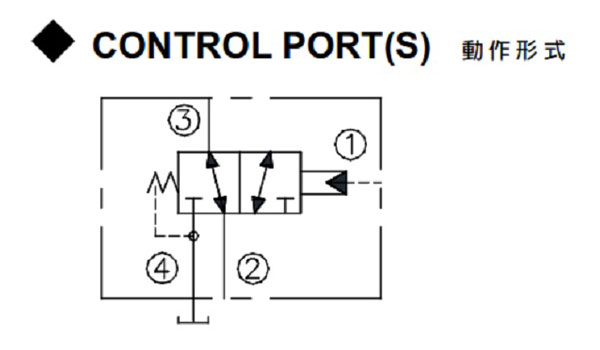

- In unpiloted, the item allows flow between 3 and 2 while blocking at 4. On remote pilot signal at 1, the valve shifts to allow flow between 3 and 4 while blocking at 2.
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VEP-16 | 350 (5076 psi) | 160 (42.27 gpm) | 0.52(1.15 Ibs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||
