Features
- The only difference between this valve and the standard model is a spring placed between pilot section and poppet.
- This design allows faster response times with very small flow or even virtually zero flow.
- A pressure of approximately 4 bar (58 psi) is required to open the main poppet.
- Specifications

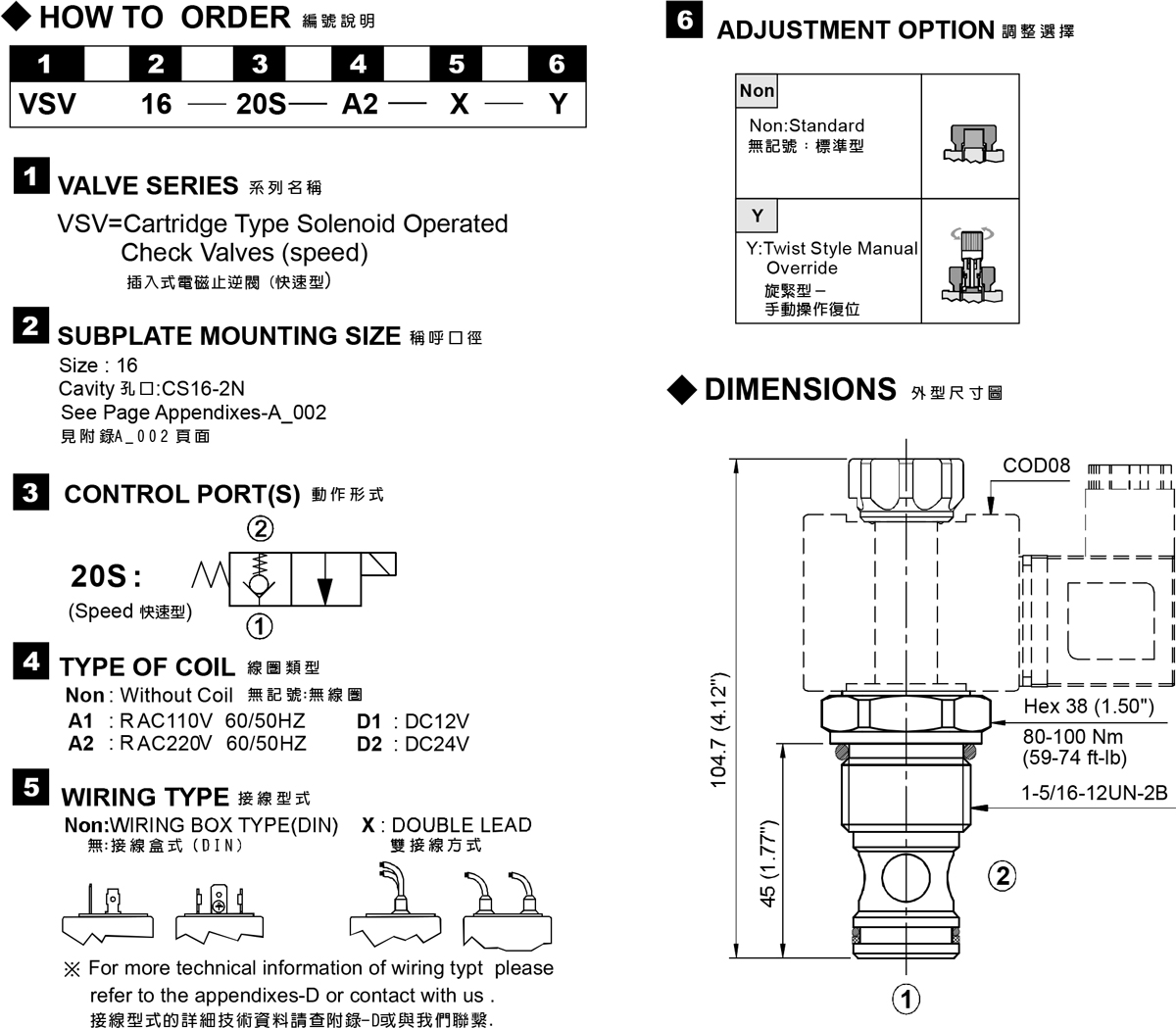

- How to Order
| Model Number | Operating Pressure | Maximum Flow | Weight | |
|---|---|---|---|---|
| VSV16-20S | 350 (5076 psi) | 150 (39.63 gpm) | 0.71 (1.57 lbs) | |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity | 10~400 (59~1854 SSU) | |||
| Operating Temperature | -30~100 (-22~212oF) | |||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | |||
