Directional Control Valves VSVD16
- Home
- Products
- Cartridge Valves
- Directional Control
- Directional Control Valves
- Specifications

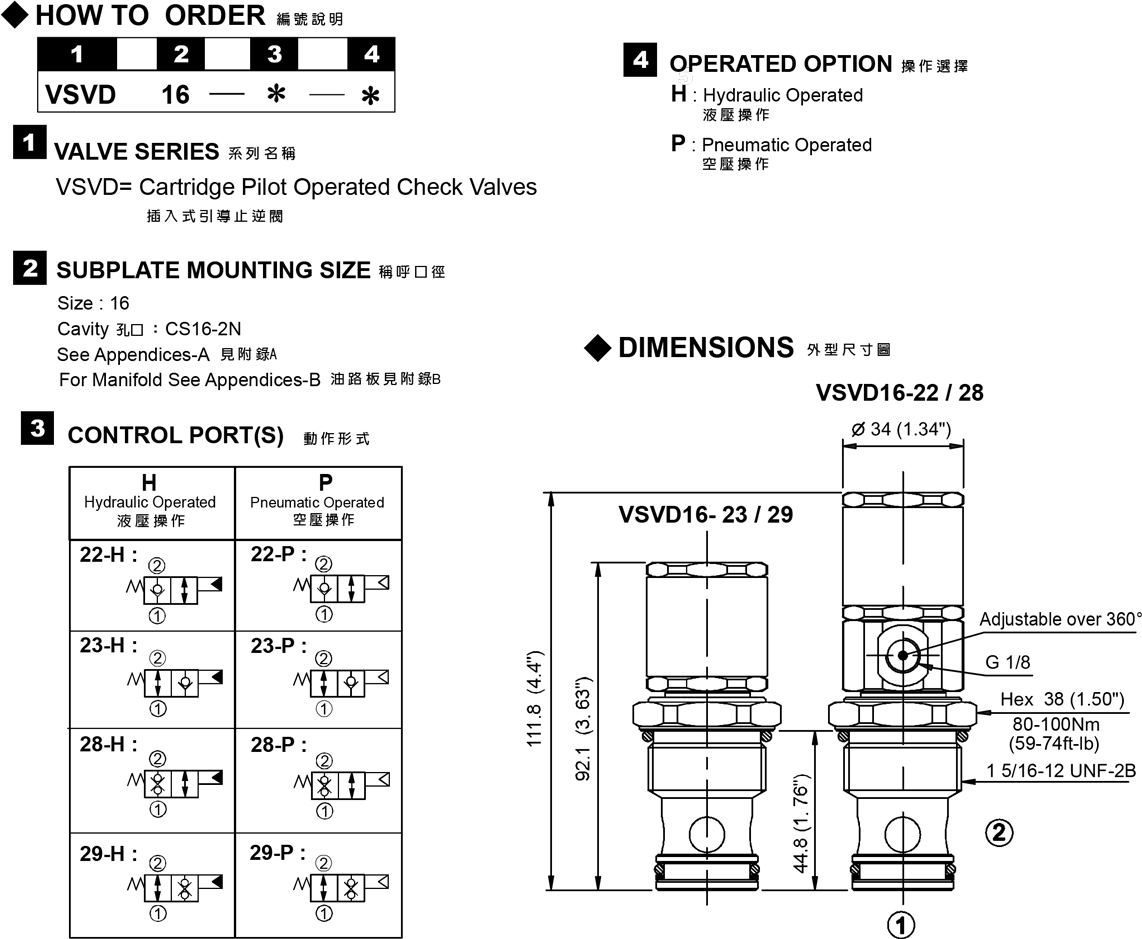

- How to Order
| Model Number | Maximum Pressure (bar) | Pilot Pressure (bar) | Maximum Flow (lpm) | Weight (kg) | |
|---|---|---|---|---|---|
| VSVD16-*-H | 350 (5076 psi) | Hydraulic Operated | 2~50 (29~725 psi) | 150 (39.63 gpm) | 0.66 (1.46 Ibs) |
| VSVD16-*-P | Pneumatic Operated | 4~15 (58~218 psi) | |||
| Fluid Type | ISO VG 32,46,68 | ||||
| Viscosity (cSt) | 10~400 (59~1854SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212 °F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
