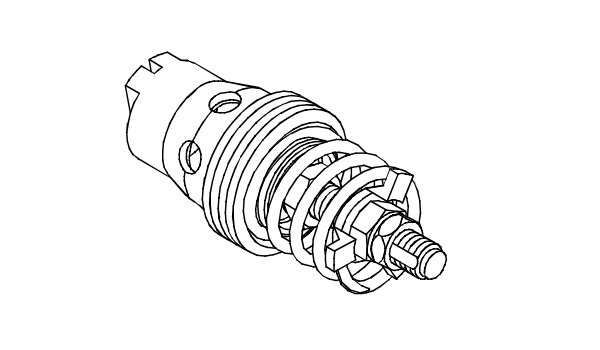

Flow Control Valves VAF-14, VAF-38, VAF-12, VAF-34

Picture Index
Model Index
Features

  • Use this valve as a pressure-compensation throttling valve of descending control, which sustains a constant descending speed of loading although the loading fluctuation might be significant; user can adjust the distance and preset the passing flow rate.

Inquiry
PDF
  • Specifications

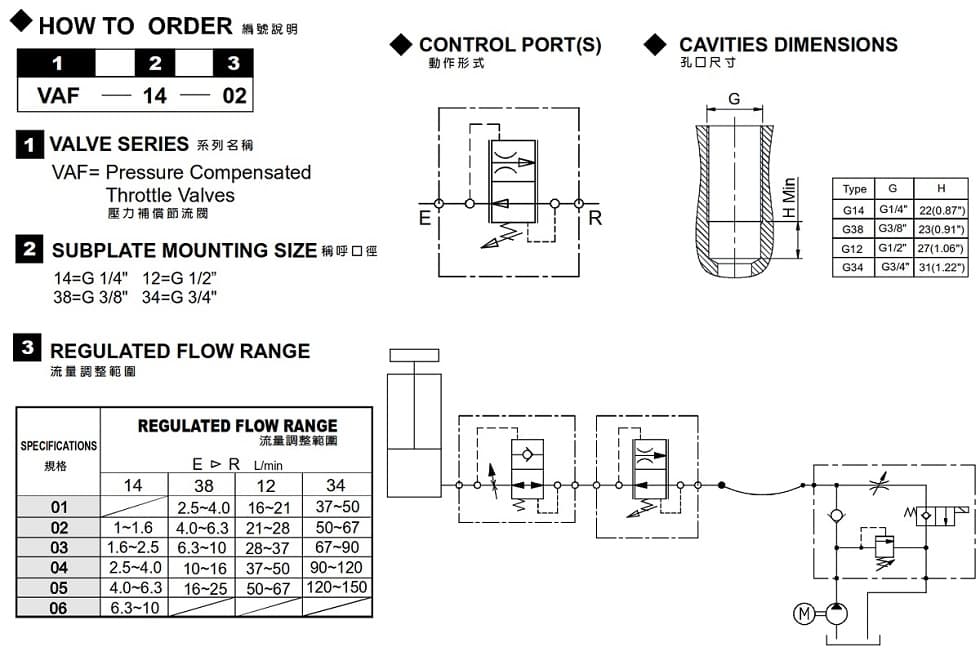

  • How to Order
Model Number Maximum Pressure Maximum Flow Weight
VAF-14 315 (4569 psi) 10 (2.64 gpm) 0.012 (0.026 lbs)
VAF-38 25 (6.60 gpm) 0.023 (0.051 lbs)
VAF-12 67 (17.70 gpm) 0.037 (0.082 lbs)
VAF-34 150 (39.63 gpm) 0.072 (0.159 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -30~100 (-22~212oF)
Contamination Level ISO4406. 20/18/15 NAS1638,9
