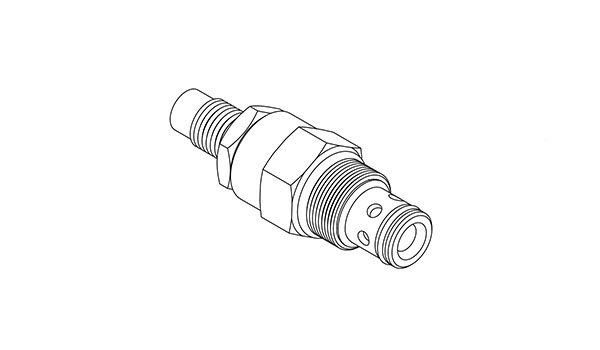

Flow Control Valves VCT-10

Picture Index
Model Index
Features

  • A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve.

Inquiry
PDF
  • Specifications
  • How to Order
Model Number Maximum Pressure Maximum Flow Weight
VCT-10 350 (5076 psi) 75 (19.81 gpm) 0.18 (0.39 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -15~70 (-5~158oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
