Features
- Balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- Not suitable for use in load holding applications due to spool leakage.
- Specifications

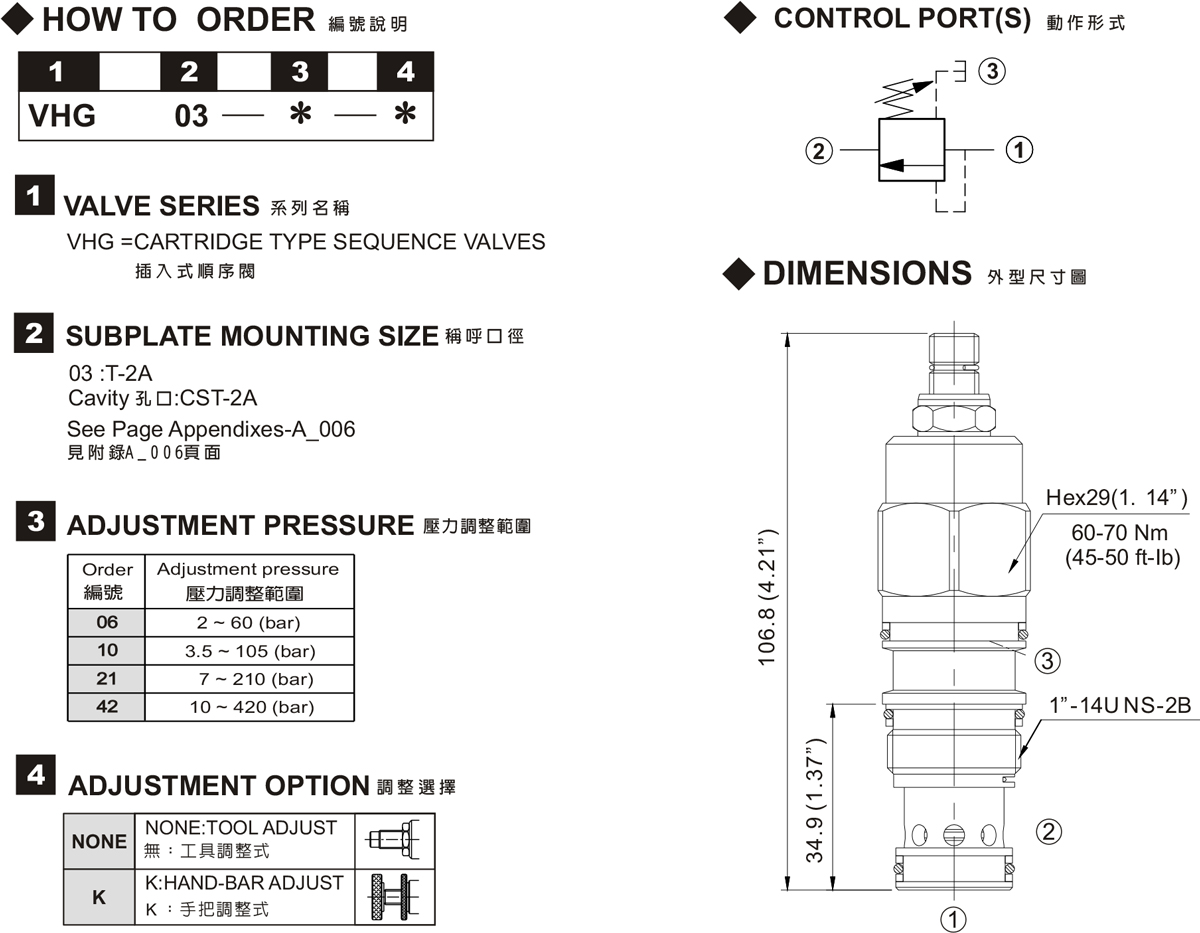

- How to Order
| Model Number | Maximum Pressure | Maximum Flow | Weight |
|---|---|---|---|
| VHG-03 | 350 (5076 psi) | 120 (31.70 gpm) | 0.33 (0.73 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity | 10~400 (59~1854 SSU) | ||
| Operating Temperature | -30~100 (-22~212oF) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
