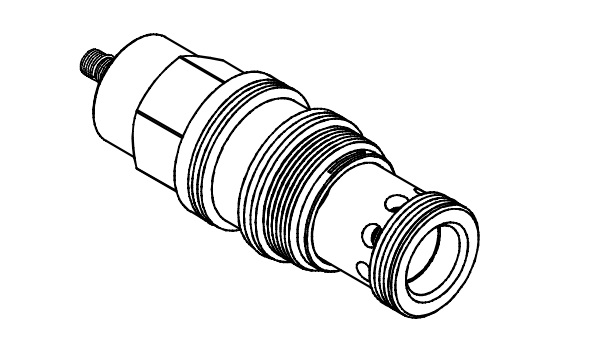

Pressure Control Valves VHG-10

Features

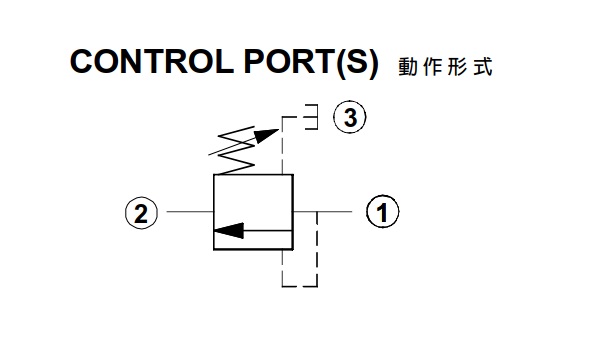

  • Balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
  • These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
  • Not suitable for use in load holding applications due to spool leakage.

Inquiry
PDF
  • Specifications

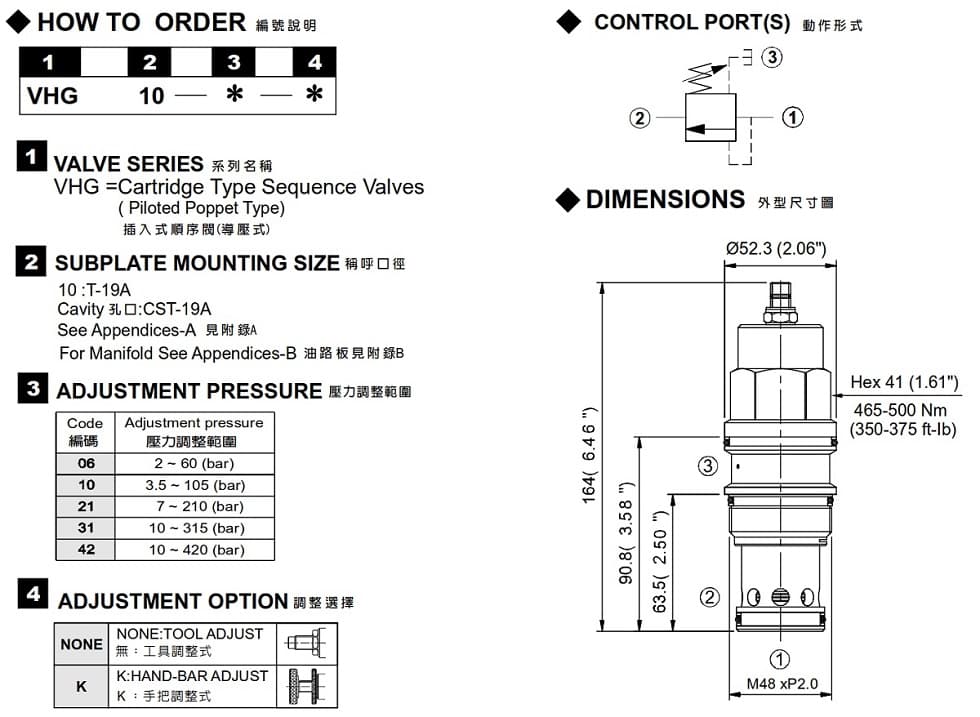

  • How to Order
Model Number Maximum Pressure Maximum Flow Weight
VHG-10 350 (5076 psi) 480 (126.80 gpm) 1.45 (3.20 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -15~70 (-5~158oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
