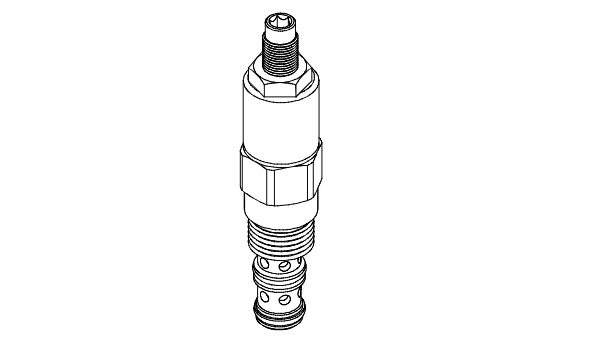

Pressure Control Valves VSQA-10

Features

  • A direct-acting hydraulic sequence valve with internal pilot and spring chamber drain, designed to direct flow to a secondary circuit once a pre-determined pressure level is attained in the primary circuit.

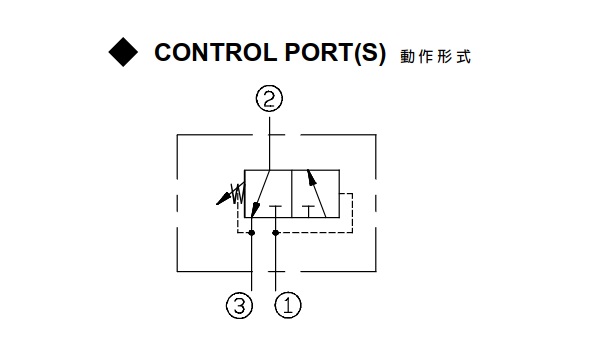

  • In its steady state, the VSQA-08 blocks flow at ①,while allowing flow to pass from ② to ③
  • On attainment of a pre-determined pressure at ①,the cartridge shifts to open ① to ②

Inquiry
PDF
  • Specifications

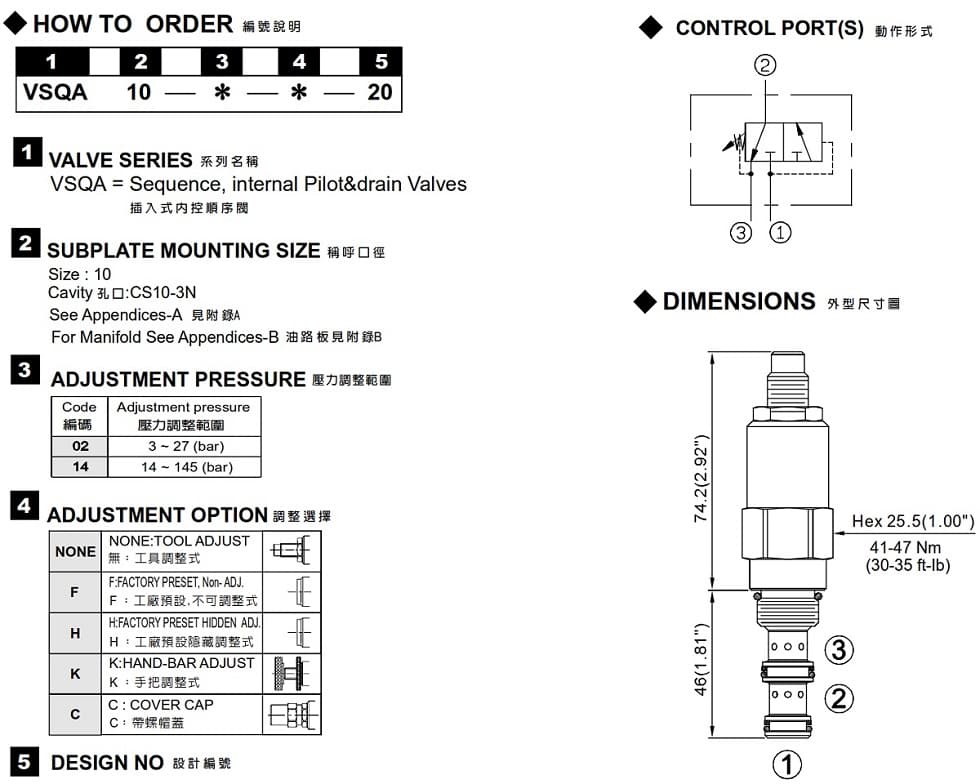

  • How to Order
Model Number Operatlng Pressure Flow Weight
VSQA-10 240 (3481 psi) 38 (10.04 gpm) 0.35 (0.77 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -15~70 (-5~158oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
