Proportional Flow Valves (Pressure Compensated Include) EVF-12

Picture Index
Model Index
Features

  • Proportional flow valve. It can be used as a priority-type flow regulator with pressure-compensated,regulated and bypass flow.
  • It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2 ) is blocked.

Inquiry
PDF
  • Specifications

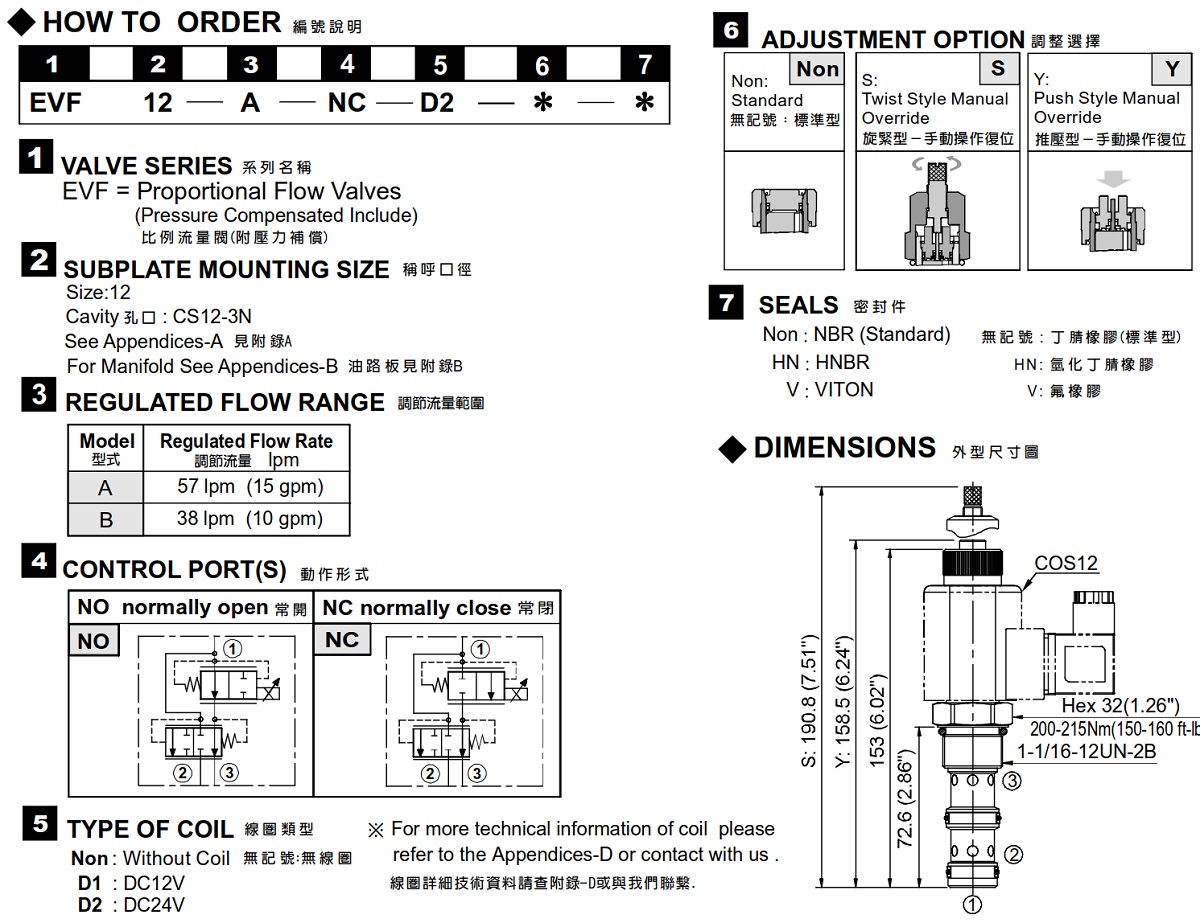

  • How to Order
Model Number Operating Pressure (bar) Maximum Flow (lpm) Maximum Current (mA) Voltage (VDC) Weight (kg)
EVF-12 250 (3626 psi) 114 (30.12 gpm) 1600±200 12 0.81 (1.79 lbs)
800±100 24
Fluid Type ISO VG 32, 46, 68
Viscosity (cSt) 10~400 (59~1854 SSU)
Operating Temperature (°C) -30~100 (-22~212°F)
Contamination Level ISO4406. 20/18/15 NAS1638. 9
