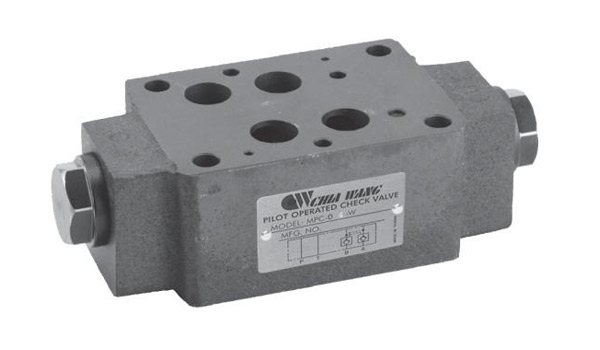

Pilot Operated Check Modular Valves MPC-04
- Home
- Products
- Traditional Valves
- Modular Type
- Directional Control
- Pilot Operated Check Modular Valves
Features
- MPC series modular pilot operated check valves can be used for the "A" port or "B" port respectively, or the "A" port and "B" port jointly.
- Casting iron valve bodies are provided strength and durability for longer life.
- Internal hardened steel components also provide durable life.
- All the MPC-04 are release pressure type.
- Specifications
- How to Order
Model Number | Maximum Pressure | Connetcing PT | Maximum Flow | Weight |
---|---|---|---|---|
MPC-04-A, B , W | 315 (4500 psi) | 1/2" | 300 (79.25 gpm) | 10.5(12.1 Lbs) |
Fluid Type | ISO VG 32, 46, 68 | |||
Viscosity | 10~400 (59~1854 SSU) | |||
Operating Temperature | -15~70 (-5~158oF) | |||
Contamination Level | ISO4406. 21/19/16 NAS1638,10 | |||
Surface Treatment | Zinc Phosphate Compound |
- All screws with metric measure, if require inch measure, please contact us.
