Stack Valve EDMG-03, EDMG-04
- Specifications

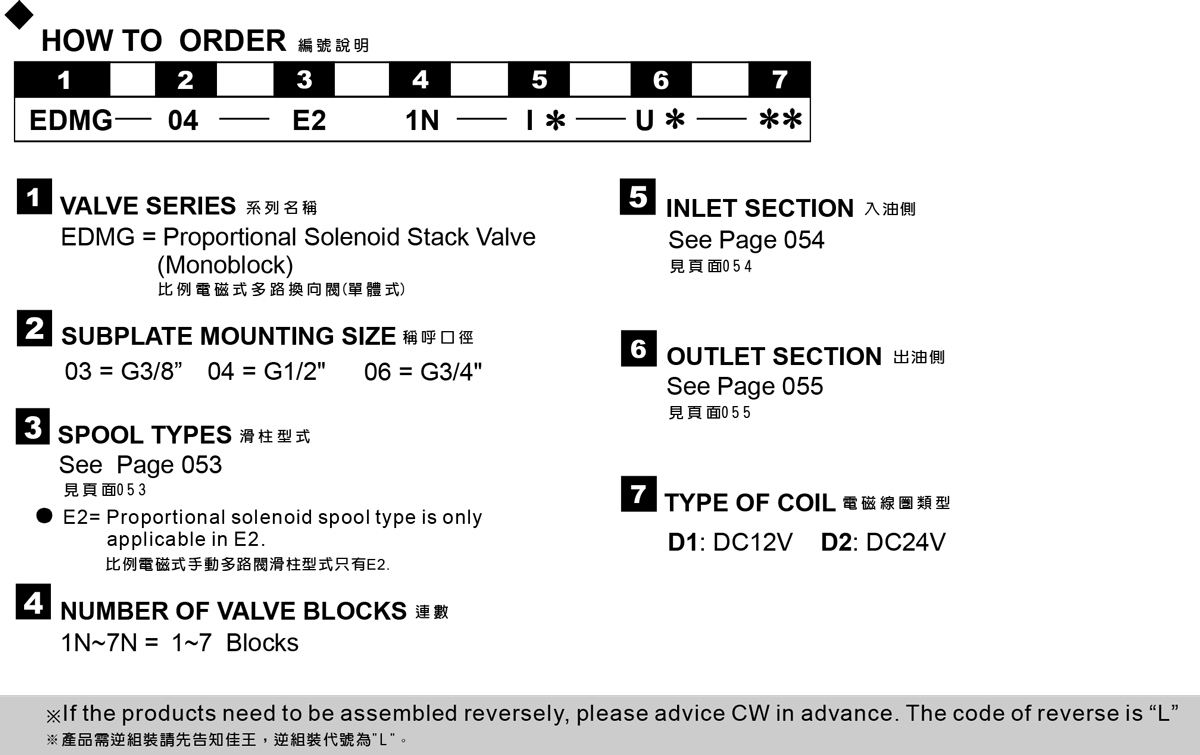

- How to Order
Model Number | Maximum Pressure | Maximum Current | Maximum Flow | Back Pressure-"T" | Weight | |
---|---|---|---|---|---|---|
DC 12V | DC 24V | |||||
EDMG-03-**-** | 350 (5075 psi) | 5 | 2.5 | 45 (11.9 gpm) | Max. 25 (362 psi) | * |
EDMG-04-**-** | 350 (5075 psi) | 70 (18.5 gpm) | * | |||
Fluid Type | ISO VG 32, 46, 68 | |||||
Viscosity | 10~400 (59~1854 SSU) | |||||
Operating Temperature | -30~100 (-22~212oF) | |||||
Contamination Level | ISO4406. 21/19/16 NAS1638,10 |
- Standard pressure of rellef valve aets at 210 bar.
- ※Any request of setting pressure at 350 bar, please inform CW in advance.
- ※For relief valves, please refer to VRV-03 series.
![](/upload-files/product/2-Stack-Valves/1-Monoblock-type-directional-control/EDMG-03-04/EDMG-03-04-02.jpg)
