Features

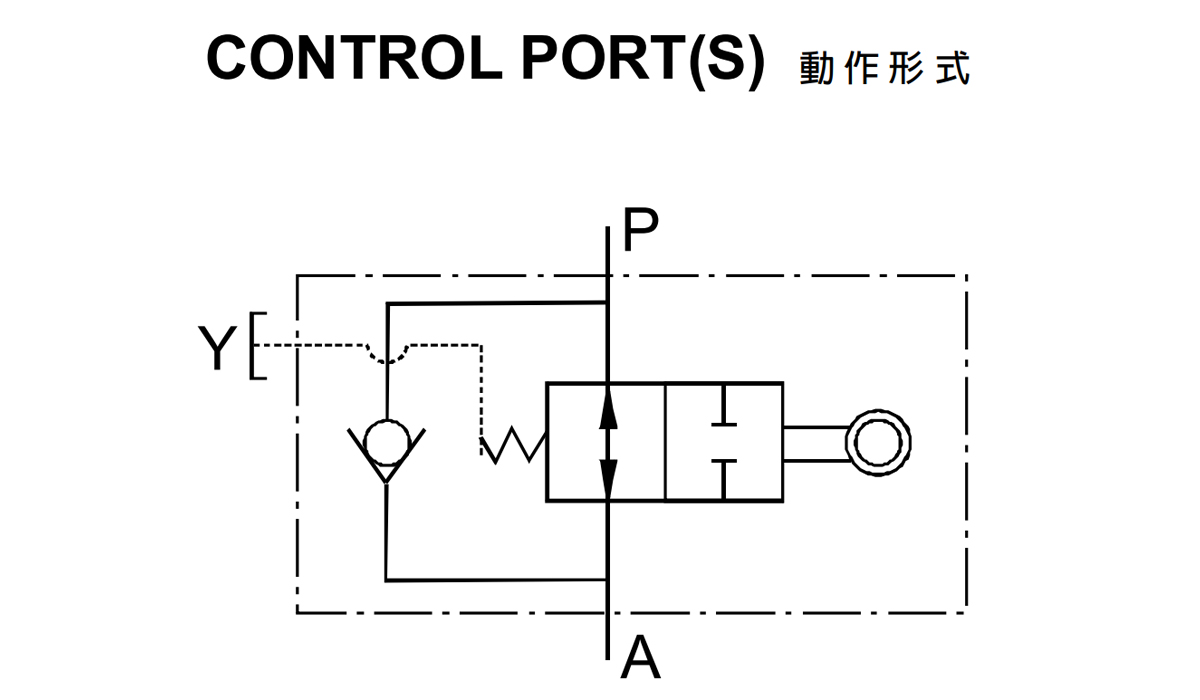

- These valves are used as cam controlled unidirectional flow regulators.
- Normally mounted in line between actuator and directional valve for the displacement of carriages or slides, they enable cam controlled acceleration or eceleration of the moving mass.
- A special intemal check valve allows free flow the opposite direction.
- Specifications
- How to Order
Model Number | Maximum Pressure | Maximum Flow | Weight |
---|---|---|---|
ZTC-04T | 180 (2625 psi) | 40 (10.56 gpm) | 2.8 (1.29 lbs) |
Fluid Type | ISO VG 32, 46, 68 | ||
Viscosity | 10~400 (59~1854 SSU) | ||
Operating Temperature | -15~70 (-5~158oF) | ||
Contamination Level | ISO4406. 21/19/16 NAS1638,10 |
- All screws with metric measure, if require inch measure, please contact us.
