Single Gear Pumps HGP-3A
- Home
- Products
- Hydraulic Accessories
- Pumps
- Single Gear Pumps
- Specifications

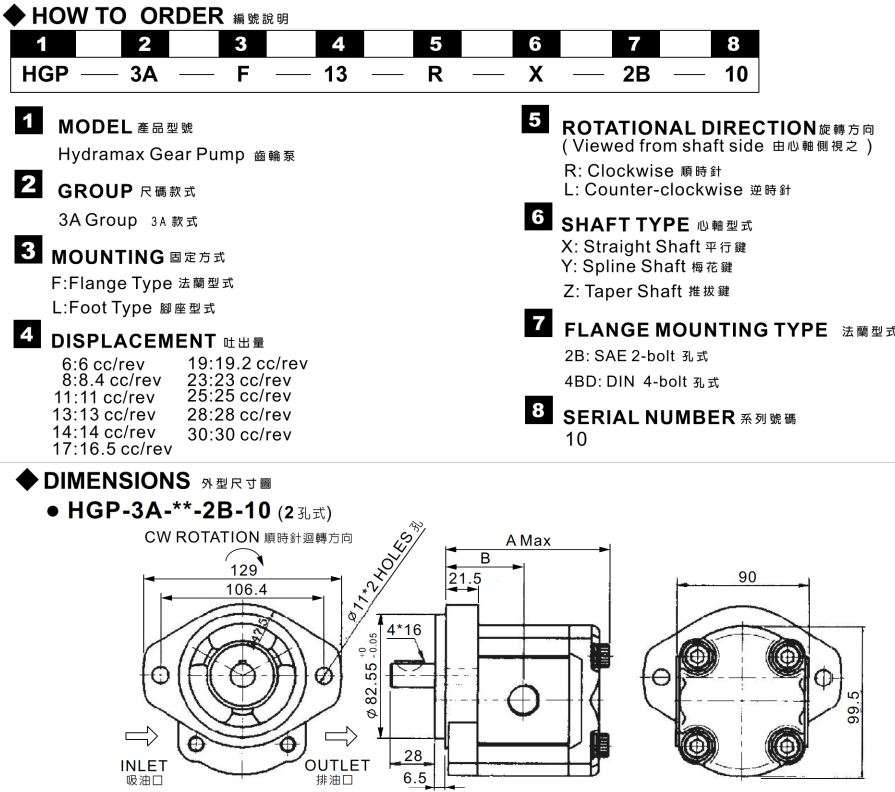

- How to Order
| Model | Displacement (cc/rev) | Pressure bar (psi) | Speed (rpm) | Port size (PT) | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Work | Max. | Rate | Max. | Min. | Out | In | kg | ||
| HGP-3A-*6* | 6 | 210 (3000) |
250 (3500) |
1800 | 3000 | 700 | PT3/4 | PT1/2 | 2.25 |
| HGP-3A-*8* | 8.4 | 2.40 | |||||||
| HGP-3A-*11* | 11 | 600 | 2.55 | ||||||
| HGP-3A-*13* | 13 | 2.70 | |||||||
| HGP-3A-*14* | 14.3 | 400 | 2.85 | ||||||
| HGP-3A-*17* | 16.5 | 3.05 | |||||||
| HGP-3A-*19* | 19.2 | 3.20 | |||||||
| HGP-3A-*23* | 23 | 3.35 | |||||||
| HGP-3A-*25* | 25 | 140 (2000) |
175 (2500) |
3.5 | |||||
| HGP-3A-*28* | 28 | PT1 | PT3/4 | 3.6 | |||||
| HGP-3A-*30* | 30 | 3.6 | |||||||
