Filler Breather Filters AB-1162, AB-1163
- Home
- Products
- Hydraulic Accessories
- Suction Filters
- Filler Breather Filters
- Specifications

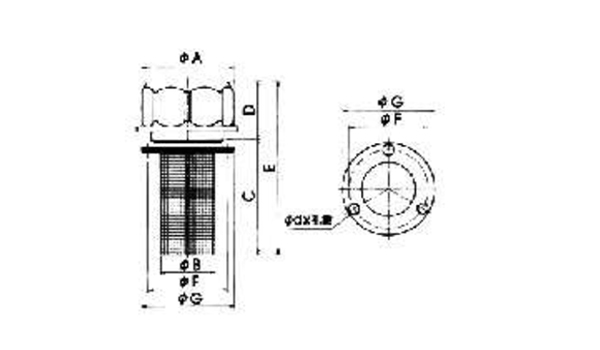

| Model | Net Dia mm | A mm | B mm | C mm | D mm | E mm | F mm | G mm | d x Hole | Filtration micron | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AB-1162 | 32 | 53 | 31 | 65 | 34 | 99 | 45.5 | 53 | Φ6 x 3 | 400 | 0.07 |
| AB-1163 | 50 | 75 | 48 | 88 | 49 | 137 | 71 | 88 | Φ6 x 6 | 0.19 |
