N Type Suction Fliter N-04
- Home
- Products
- Hydraulic Accessories
- Suction Filters
- N Type Suction Fliter
- Specifications

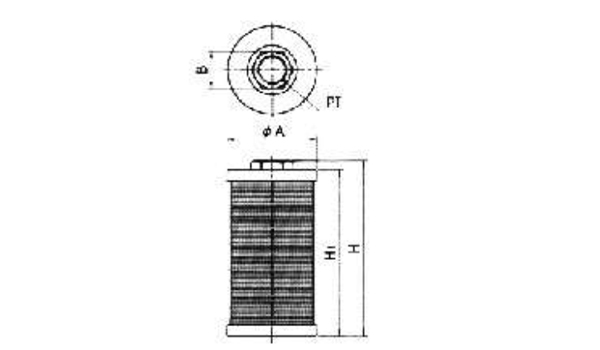

| Model | PT | A mm | B mm | H1 mm | H mm | Flow l/min | Filtration mesh | Weight kg |
|---|---|---|---|---|---|---|---|---|
| N-04 | 1/2" | 64 | 27 | 153 | 160 | 35 | 150 | 0.27 |
| N-06 | 3/4" | 64 | 34 | 153 | 166 | 46 | 0.28 | |
| N-08 | 1" | 83 | 42 | 198 | 210 | 90 | 0.48 | |
| N-10 | 1 1/4" | 103 | 53 | 215 | 231 | 150 | 0.77 | |
| N-12 | 1 1/2" | 122 | 61 | 232 | 246 | 205 | 0.96 | |
| N-16 | 2 | 122 | 74 | 317 | 332 | 320 | 1.27 | |
| N-20 | 21/2" | 148 | 105 | 419 | 434 | 550 | 2.0 | |
| N-24 | 3" | 600 | 2.68 |
