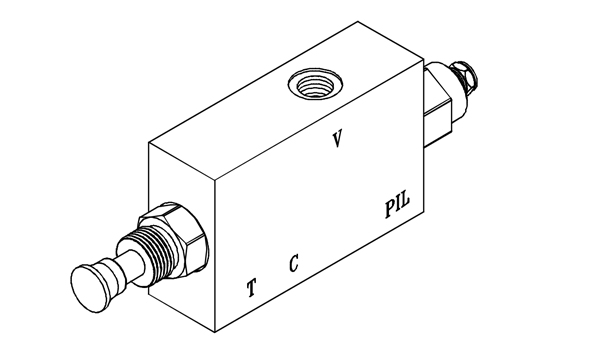

Compound Valves VCBV-08
- Home
- Products
- Stack Valves
- Accessories for stack valves
- Compound Valves
- Specifications
- How to Order
Model Number | Maximum Pressure | Pilot Ratio | Adjustment Pressure | Maximum Flow | Weight |
---|---|---|---|---|---|
VCBV-08 | 345 (5000 psi) | 3:1 / 10:1 | *~345 | 30 (7.93 gpm) | 2.5 ( 5.51 lbs) |
Fluid Type | ISO VG 32, 46, 68 | ||||
Viscosity | 10~400 (59~1854 SSU) | ||||
Operating Temperature | -15~70 (-5~158oF) | ||||
Contamination Level | β₁₀ ≥ 75,Under NAS Class 12,25μ |
