Pressure Control Valves VRV10-26

Picture Index
Model Index
Features

  • A cartridge-style, pilot-operated, hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.

Inquiry
PDF
  • Specifications

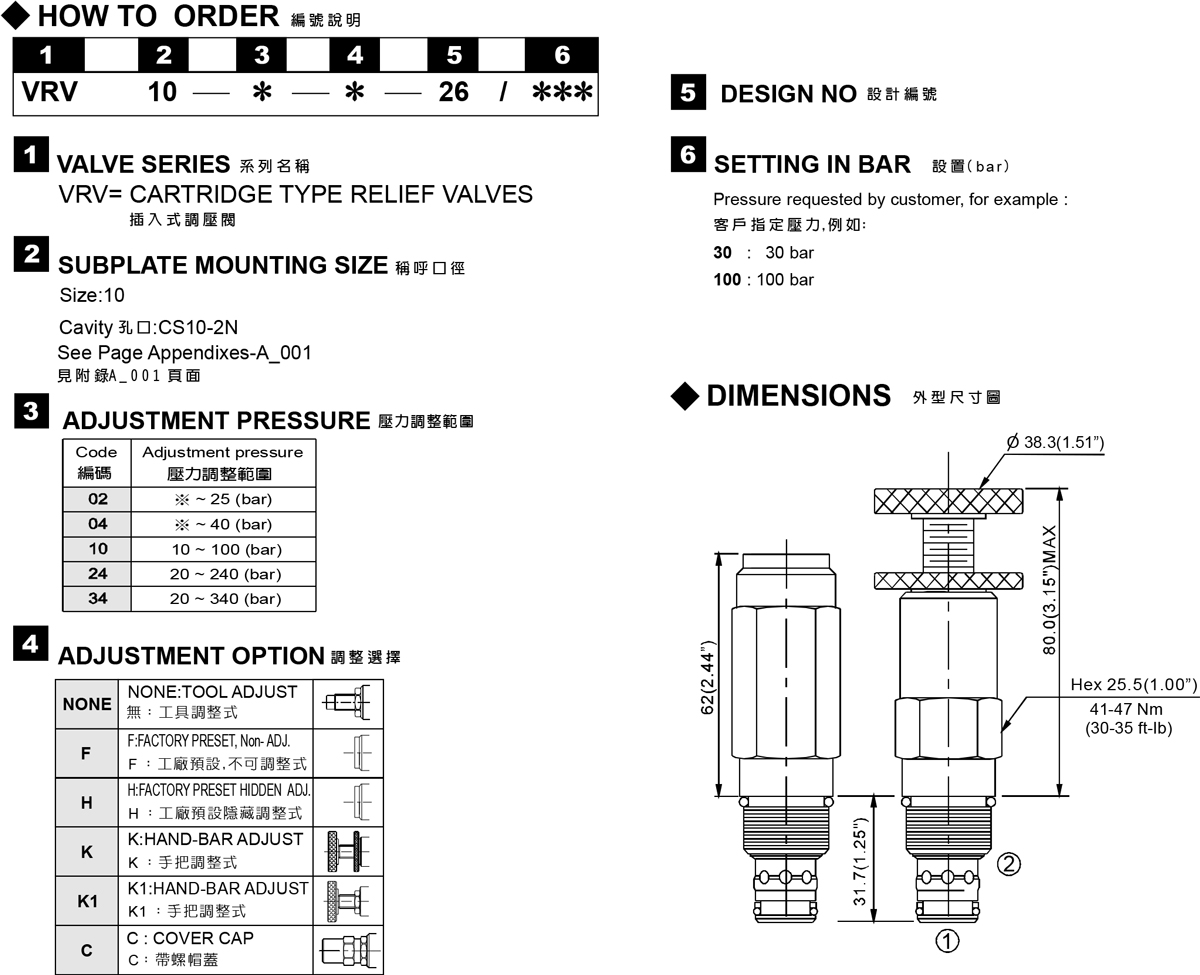

  • How to Order
Model Number Operating Pressure (bar) Flow (lpm) Weight (kg)
VRV10-26 340 (4931 psi) 110 (29.06 gpm) 0.25 (0.55 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity (cSt) 10~400 (59~1854 SSU)
Operating Temperature (°C) -30~100 (-22~212°F)
Contamination Level ISO4406. 21/19/16 NAS1638,10
